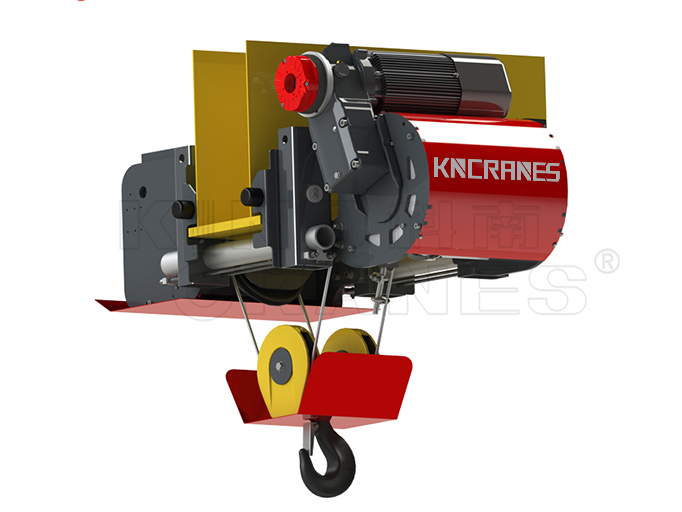

Metallurgical Wire Rope Hoist

Metallurgical wire rope hoist is mainly used for lifting molten metal metallurgical hoisting machinery equipment. Its lifting weight is less than 10 tons, the lifting height is less than 20 meters, the working environment temperature is -10°C~60°C, the environment temperature is 40°C, and the relative humidity is not More than 50% of the electric hoist, with protection functions such as double braking, double limit, heat insulation board, etc.

1. Reel brake (second brake)

Power-off braking + over speed braking

Located at the end of the drive chain, it belongs to the low-speed shaft safety brake

When the reel is working normally, the brake is in the open state. Once there is a power failure or over speed failure, the ratchet mechanism is triggered, the pawl immediately locks the reel to prevent the ladle from falling

Double protection of power failure and over speed, more secure

2. Low-speed shaft brake protection range:

Sudden power failure, first brake failure, motor stall, gearbox shaft broken, output shaft broken

3. Ratchet and pawl design, reliable braking

Small size, light weight, maintenance-free

Suitable for metallurgical hoists with a lifting capacity greater than 5t

1. Has dual brakes
2. With forward and reverse protection
3. Double-outlet redundant design (5-10t)
4. Use metallurgical wire rope
5. With overspeed protection
6. Rolling pulley
7. With double lifting limit (heavy hammer + rotation)
8. With pulley and hoist heat insulation protection cover
9. Configure lifting weight limiter
10. Adopt IP55/H grade insulated motor
11. Keep away from heat sources

• Casting crane
• Ladle crane
• Slab handling crane
• De-spindle crane
• Clamp crane
• Forging crane
• Quenching crane
• Electrolysis crane
• Material harrow crane
