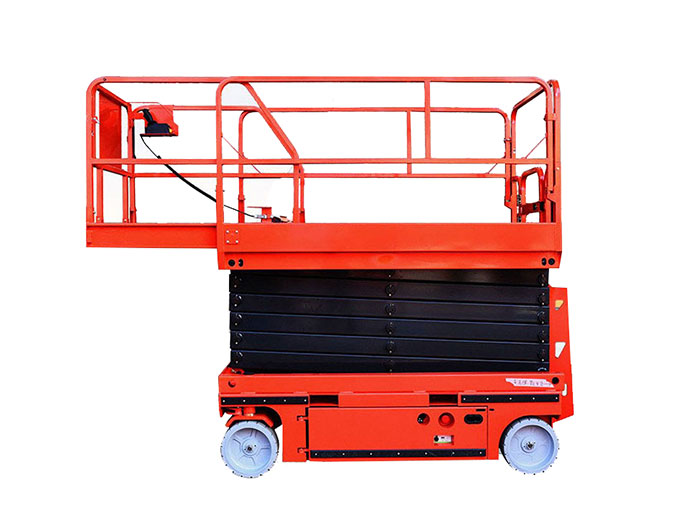

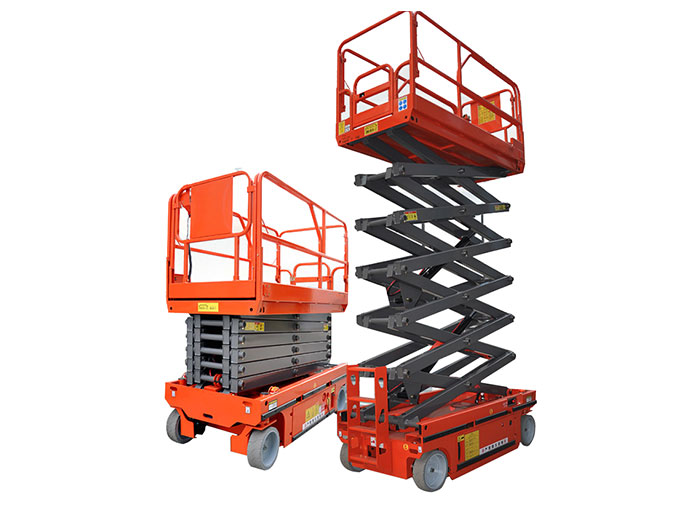

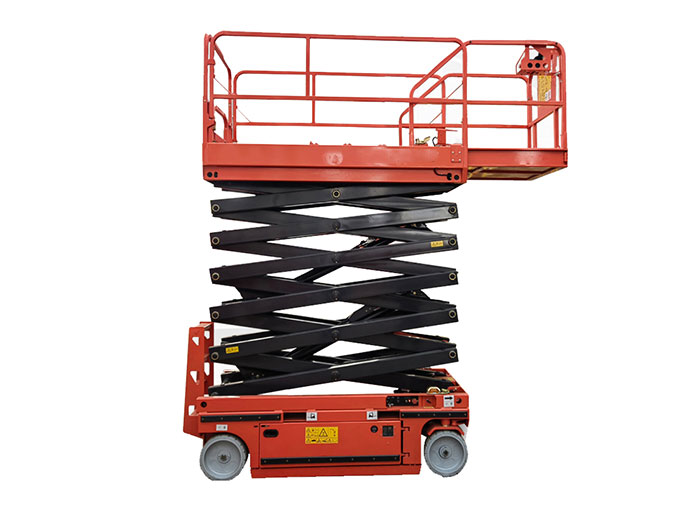

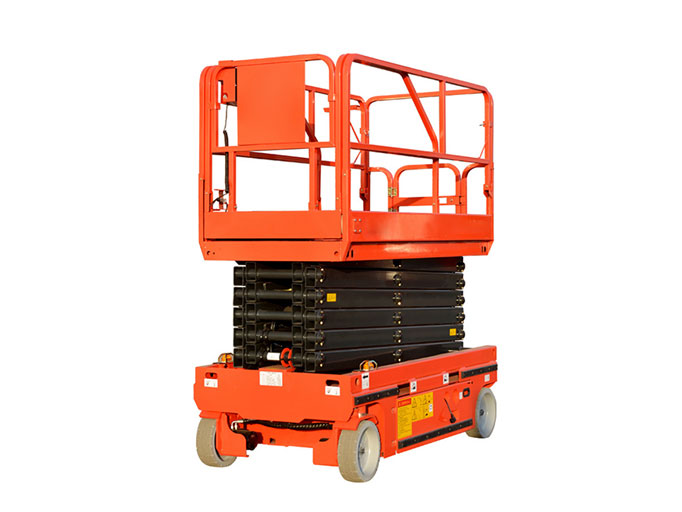

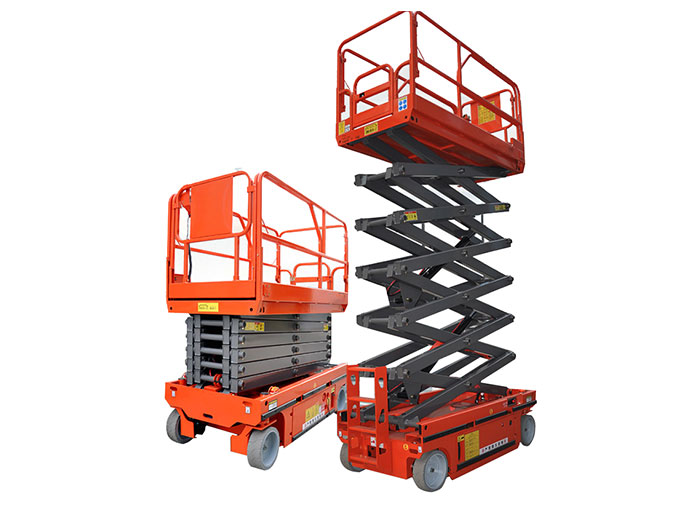

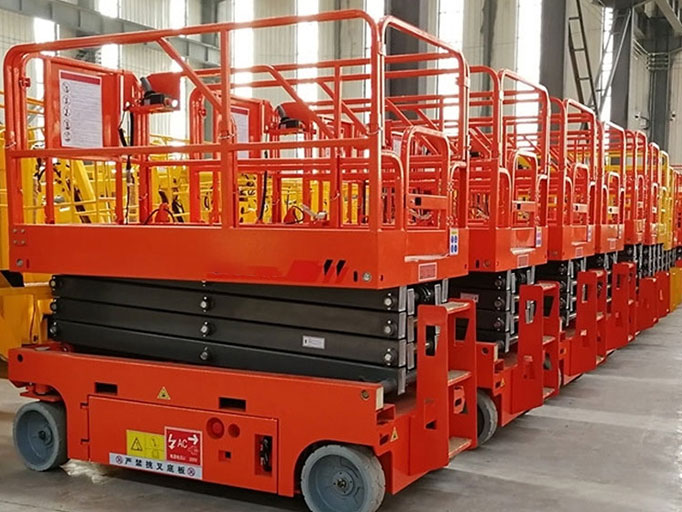

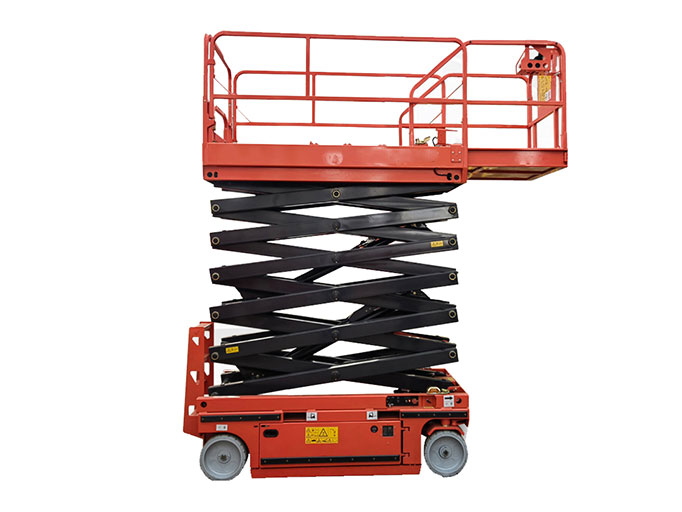

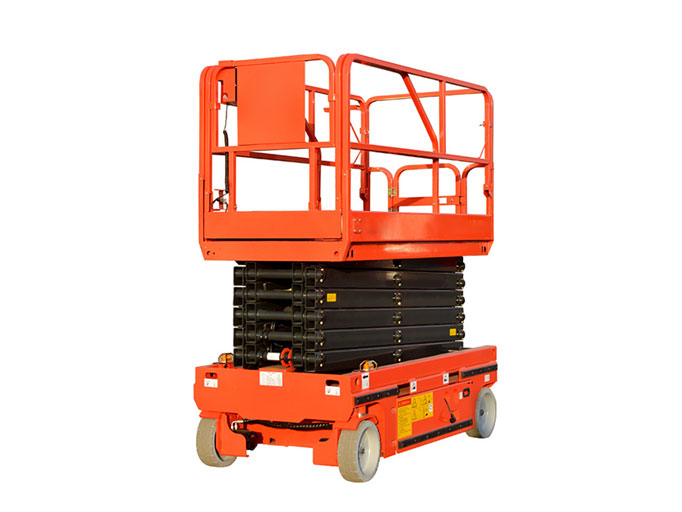

Electric Scissor Lift

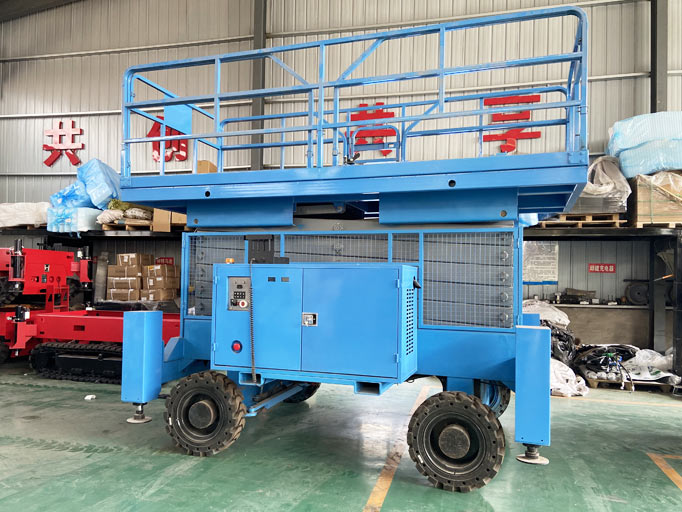

Electric drive scissor Lift, Hydraulic drive scissor Lift, Rough terrain scissor Lift

Load capacity: 200kg - 550kg

Working height: 6-14M

Power Supply: Battery

Applications:

Especially suitable for station, wharf, airport, power plant, sports venues, large enterprises and other large range of high-altitude operation

Leave Message Chat Online

  • Description
  • Technical Data
  • Features
  • Advantages
  • FAQ

Description

Electric Scissor Lift (Fully Self-propelled Lifting Platform) has the function of automatic walking machine, integrated design, built-in battery power, meet in different working conditions, no external power supply, no external power traction can lift freely, and the equipment running and steering is also just a person can be completed. The operator only needs to master the control handle to the equipment before the complete equipment forward and backward, steering, fast, slow walk and equal action. Self-propelled electric scissor liftt is mobile and flexible, convenient operation, labor saving, making high-altitude operations more efficient and convenient, it is also the ideal equipment for high-altitude operations.

Technical Data

Model Max. Lifting Height (m) Safe Work Load (kg) Lifting Motor
(Voltage/Power)
Platform Size
(mm)
Outline Dimension
Guardrail Unfolded (mm)
Extended Platform (mm) Dead Weight

(kg)

KNSL06 Mini 5.8 230 24v/3.3kw 1670*740 1855*790*2210 900 1620
KNSL-6A 6 380 24v/3.3kw 2260*810 2490*840*2200 900 1880
KNSL-6 6 550 24v/3.3kw 2260*1150 2490*1190*2200 900 2150
KNSL-8A 8 230 24v/3.3kw 2260*810 2490*840*2320 900 2050
KNSL-8 8 450 24v/3.3kw 2260*1130 2490*1190*2320 900 2300
KNSL-10 10 320 24v/3.3kw 2300*1120 2490*1190*2460 900 2540
KNSL-12 11.8 320 24v/4.5kw 2300*1120 2490*1190*2580 900 2880
KNSL-14 13.8 227 24v/4.5kw 2640*1125 2840*1395*2592 900 3410

Features

electric scissor lift detail

  • Robust, Reliable, and easy to maintain.
  • Extendable Platform. increase the working range.
  • 24V DC power source with long working cycles.
  • High strength guardrail increases the safety of high altitude operation.

Advantages

Electric Scissor Lift Advantage

  • High Performance & More Secure
  • One-time shaping by die forging
  • Own CE certification, ISO certification, China Classification Society certification, etc.
  • 200% load test

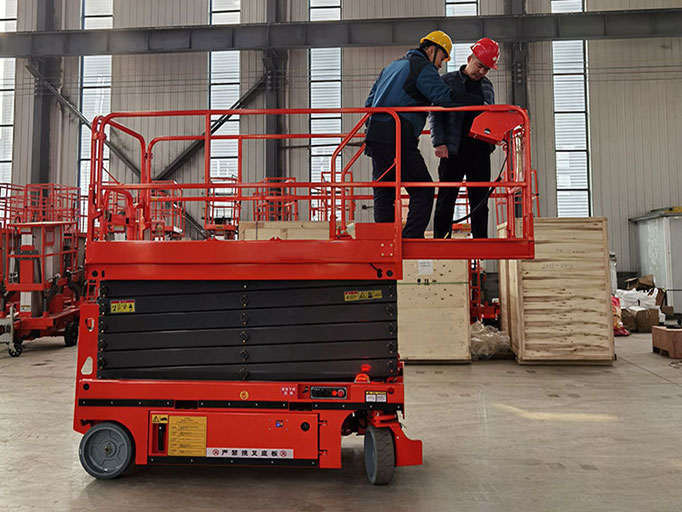

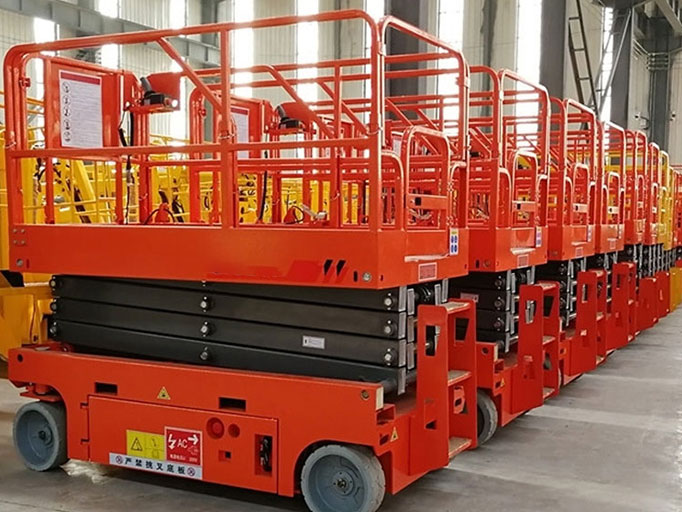

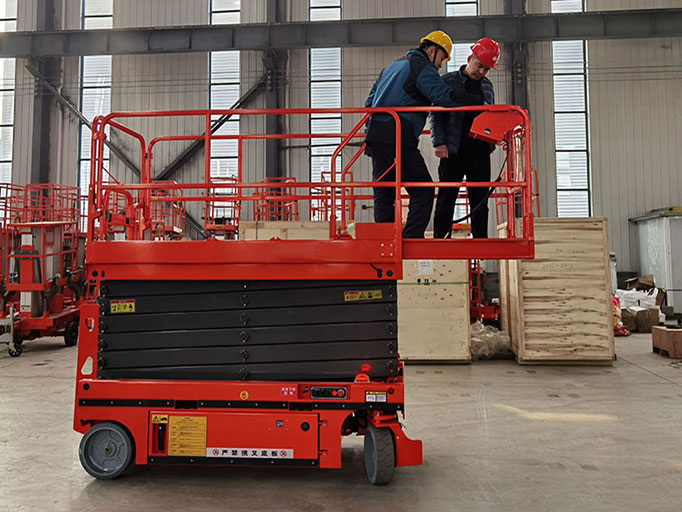

kino showroom

FAQ

1. What can you buy from us?
Scissor Lift,Scissor type lifting platform, self-propelled lifting platform, self-propelled lifting
platform, lifting table, lifting equipment, etc. we can do it with one-stop service and one-stop procurement!
2. Why should you buy from us not from other suppliers?
We are always devoted to make the first-class lift machinery and make efforts to do perfect design for customers to do lifting and aerial work. We have 15 years of experience in design and development.
3. Please imform us your detailed needs for right solution and price
a. What platform height do you need?
b. How much platform load is need for you?
c. Do you prefer hydraulic drive or electric drive?
d. How many would you like to order?
e. Which port shall we ship the goods to?
