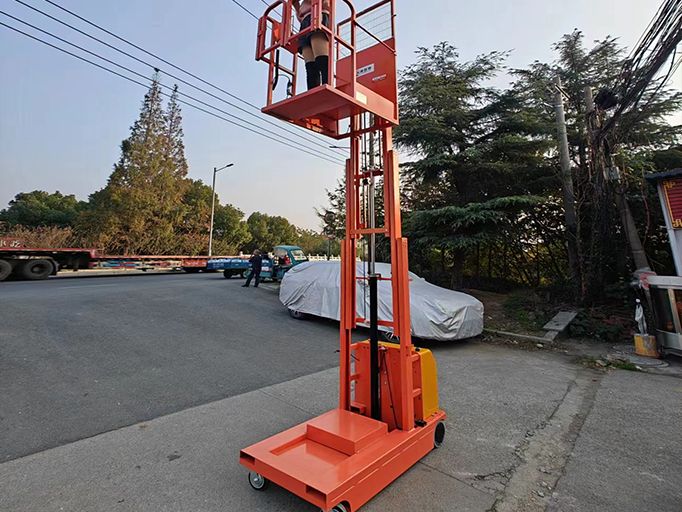

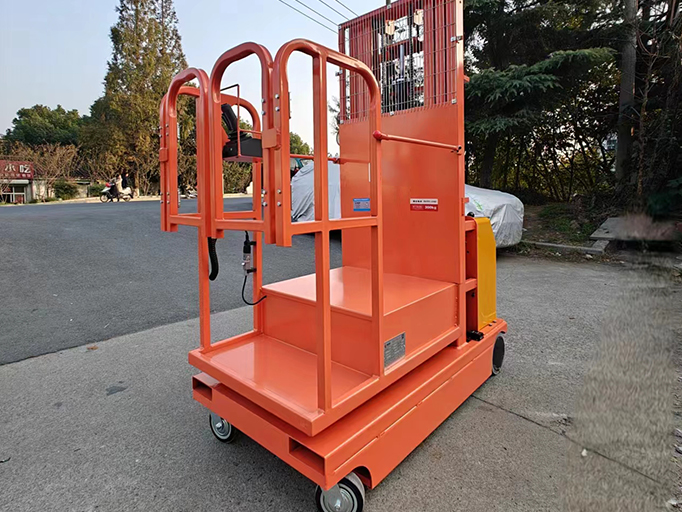

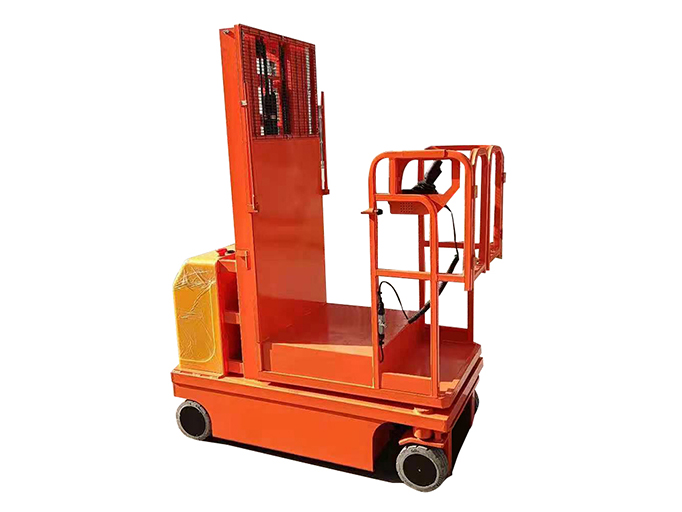

Electric Order Picker

Electric order picker is an ideal high-altitude work equipment. It is stable in performance, safe and reliable, and can be used both indoors and outdoors. This product is flexible to rotate, stable to lift and lower, and easy to operate.

• Tabletop Material: The tabletop is made of 3mm flat steel plate and bent with 30*30 rectangular tube.
• Material Main Beam: C-shaped steel 1005025, thickness 6mm (Q235 manganese steel).
• The base adopts 5mm flat plate with folded edges.
• Up and down emergency stop button: External (Delixi).
• Battery: 2*100A maintenance-free batteries.
• Hydraulic pump motor: Power 1.6kw, installed inside the equipment.
• Hydraulic cylinder: Outer diameter 65mm, inner diameter 50mm, one piece.
• Seal ring: Taiwan Dingji.
• Metal high-pressure hose: Double-layer high-pressure steel wire rubber hose.
• Hydraulic unit: Adopting Haipu hydraulic power unit.
• Hydraulic oil: Use No. 32 anti-wear hydraulic oil in winter and No. 46 anti-wear hydraulic oil in summer.

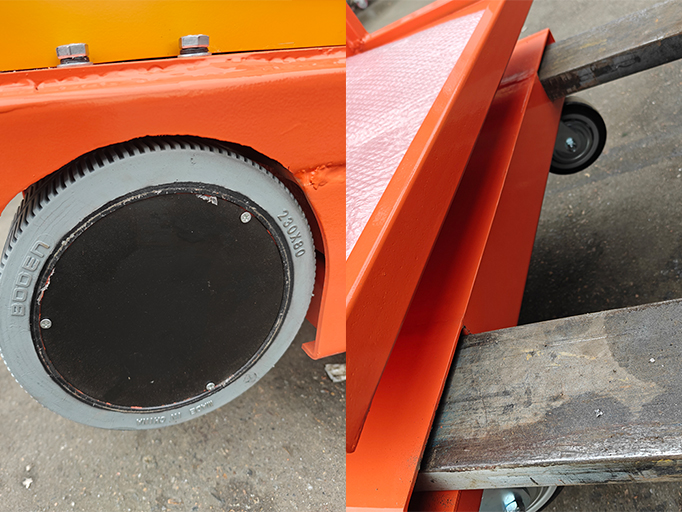

• Drive motor: Two trackless drive wheels, 230*80mm each.
• Chain: Plate chain.
• Wire: 5*0.75mm² extruded wire.
• Charger: Adopt intelligent charging.

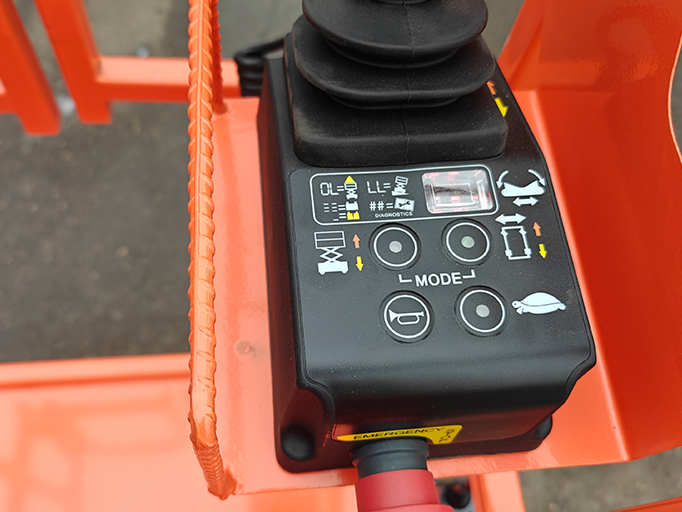

• The control system adopts branded controllers.
• Our company’s products have a simple process and processing production structure principle, convenient operation, safe and reliable use, and easy maintenance.
• Non-standard products can be customized, factory direct sales, quality guaranteed.

Q. Can I customize the order picker to meet specific requirements?

A. Yes, we offer customization options for our order pickers to tailor them to your specific needs. Contact us to discuss your requirements and customization possibilities.

Q.What are the maintenance guidelines for the equipment?

A. Detailed maintenance guidelines are provided in the user manual. Regular inspection of components, lubrication of moving parts, and following recommended service intervals are essential for optimal performance and longevity.

Q. How can I purchase your products directly from the factory?

A. To purchase our products directly from the factory, simply reach out to our sales team through the contact information provided on our website. They will assist you with the ordering process and any inquiries you may have.

Q. Are there any warranty options available for the order picker?

A. Yes, warranty options are available for our order pickers. Please inquire with our customer service team to learn more about the warranty coverage and duration for the specific model you are interested in.
