Description

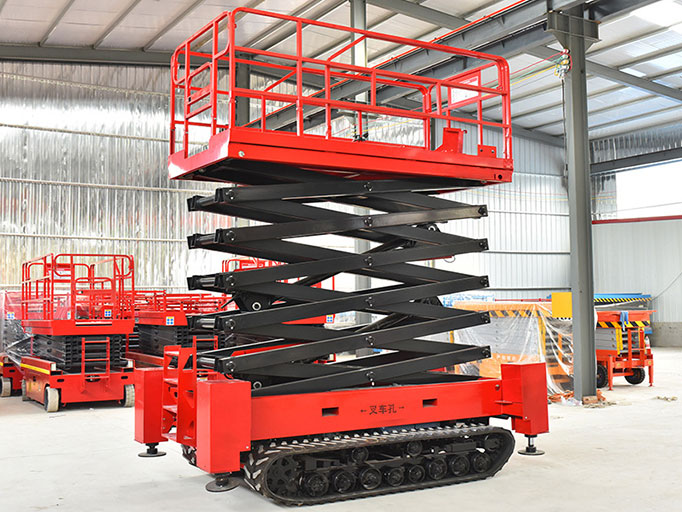

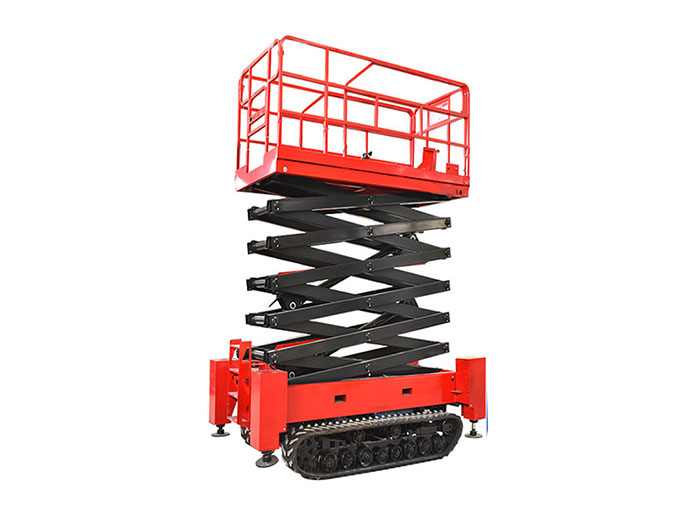

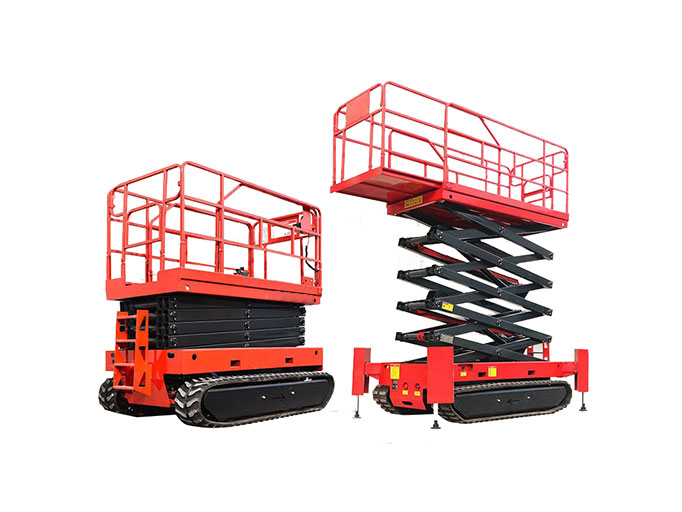

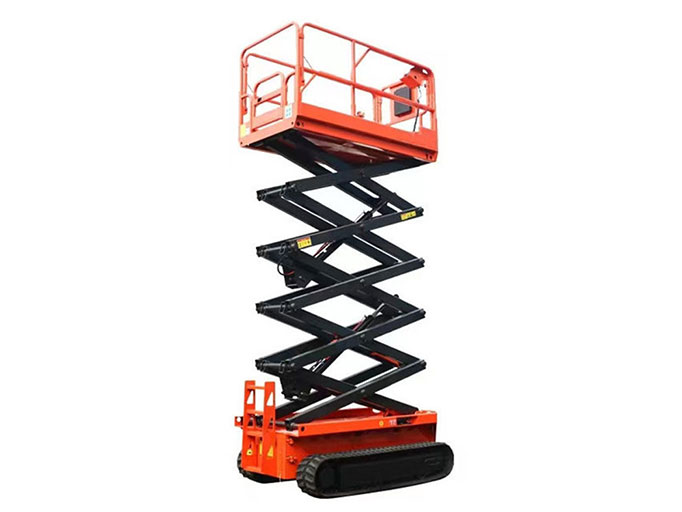

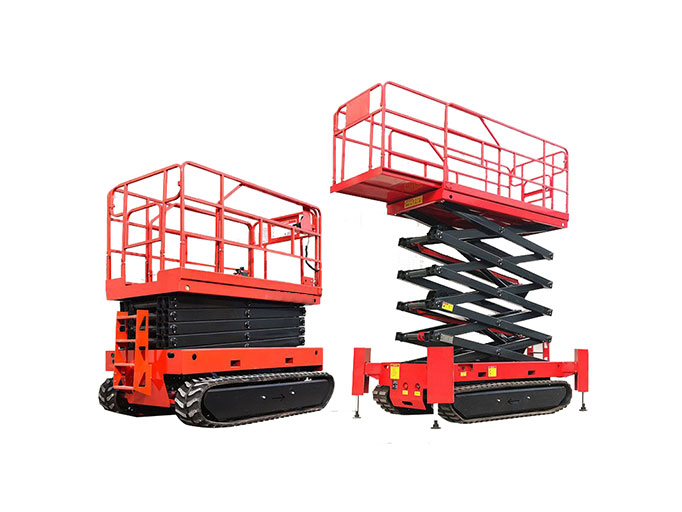

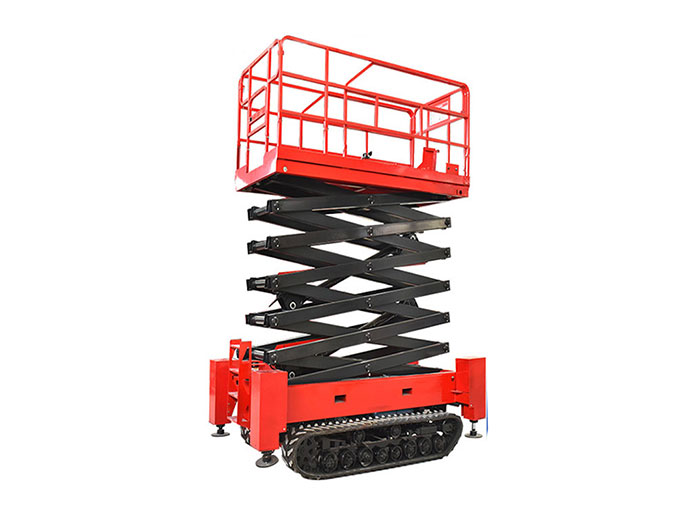

Self-propelled crawler tracked scissor lifts are electric drive, 24v or 48v optional. Our tracked scissor lifts are construction oriented, and can increase operator productivity on demanding outdoor worksites, having advantages such as strong capacity, convenient operation, safety, reliability and good quality.
First of all, the lifting platform in the lifting process of buffer force may be several times more than the weight, in order to be able to make the lifting platform stable lifting also ensure the safety of the track chassis so at the beginning of the design to the lift chassis above the hydraulic support system.

Technical Data

Model	CFPT0608	CFPT0810NP	CFPT0810	CFPT1012	CFPT1214	Self weight ( KG)
Working height (m)	8m	10m	10m	12m	14m	1850
Load capacity (kg)	450kg	380	450	320	320	2060
Platform size (m)	2.27*1.12	2.27*0.81	2.27*1.12	2.27*1.12	2.27*1.12	1980
Dimension (m)	2.481.191.66	2.480.831.87	2.481.191.78	2.481.191.91	2.481.192.03	2190
Weight (kg)	2170	2090	2360	2640	2980	2430

Features

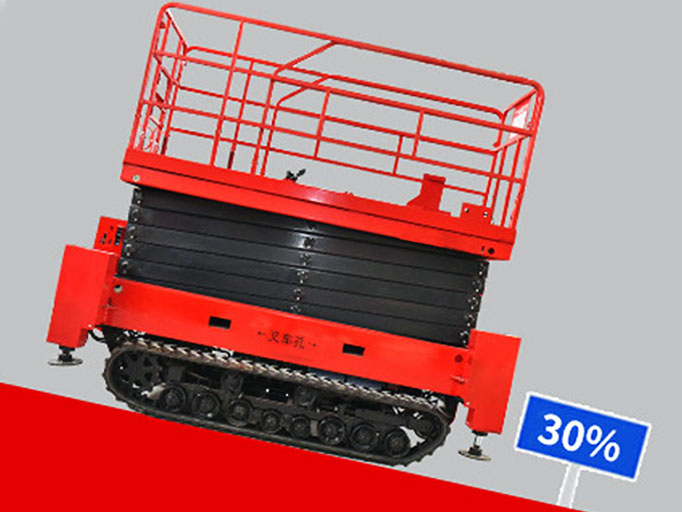

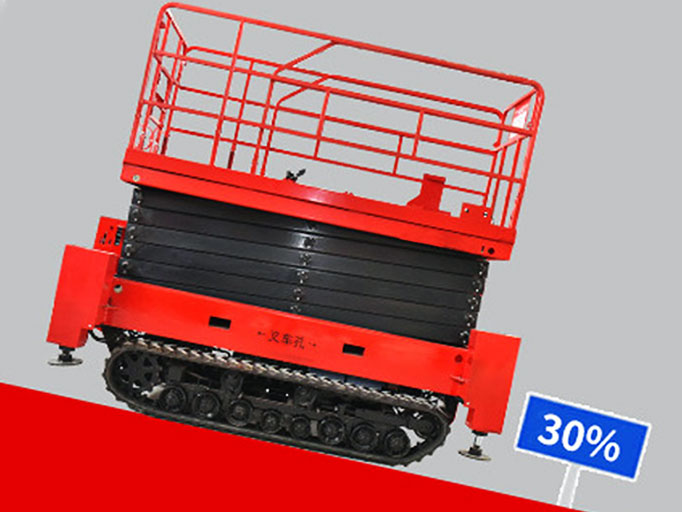

• Rough-terrain capability• 6-14m working height• 320kg load capacity.
• 24V DC or 48V power source with long working cycles.
• Zero inside turning radius.
• Derivable and functional at full height .
• Outriggers (optional).
• Emergency stop at both platform and ground controls.
• Proportional controls for drive functions.

Advantage

Manganese steel material

Manganese steel material, stable structure, high strength, large bearing capacity, shot blasting rust removal, electrostatic spray, good adhesion to the paint, good smoothness, smooth and delicate paint.

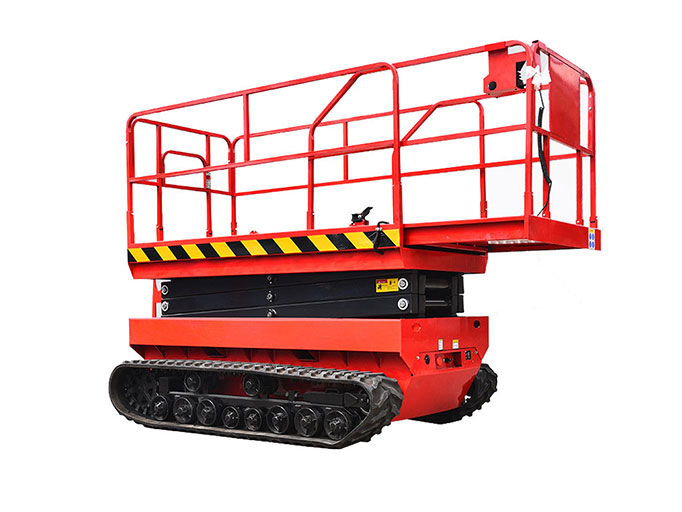

Elongated extension platform

Adopts elongated extension standing platform, which has a larger operating range and greatly improves working efficiency.

Rubber tracks

Rubber track, tear resistance, not easy to wear, long service time; Optional Diesel drive or electric drive.

Hydraulic leg

Adding hydraulic legs can achieve a key leveling, pit injection uneven road surface can also work

High strength guardrail increases the safety of high altitude operation.
Retractable table, increase the working range.
Distribution box, DC motor, valve block assembly, brand battery, charger.

FAQ

1. What can you buy from us?
Scissor Lift,Scissor type lifting platform, self-propelled lifting platform, self-propelled lifting
platform, lifting table, lifting equipment, etc. we can do it with one-stop service and one-stop procurement!
2. Why should you buy from us not from other suppliers?
We are always devoted to make the first-class lift machinery and make efforts to do perfect design for customers to do lifting and aerial work. We have 15 years of experience in design and development.
3. Please imform us your detailed needs for right solution and price
a. What platform height do you need?
b. How much platform load is need for you?
c. Do you prefer hydraulic drive or electric drive?
d.How many would you like to order?
e. Which port shall we ship the goods to?
