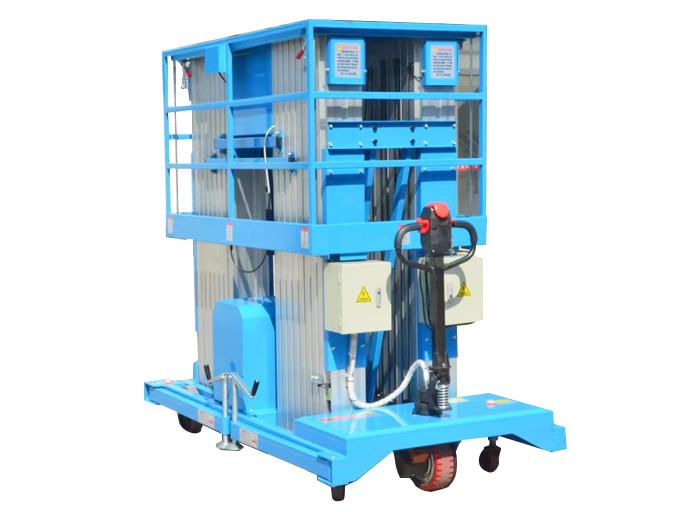

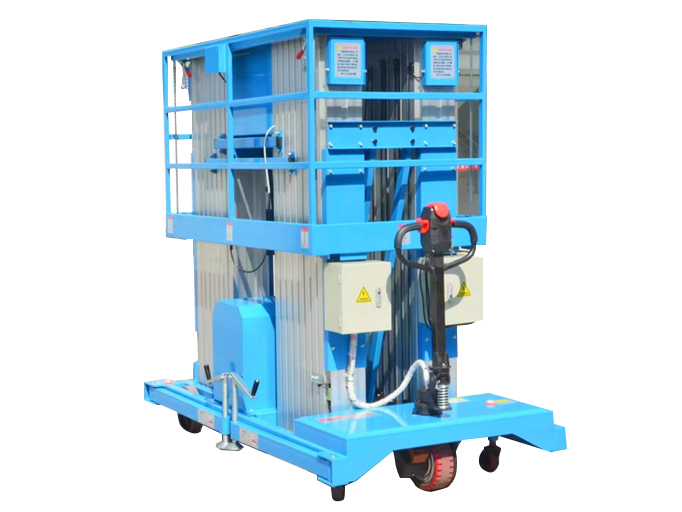

Aluminium Alloy Lifting Platform

Rated capacity:100/200kg

Working height: 5-16m

Voltage: single phase alternating current or battery

Walking ways: Manual, Car tow, Walk-assistant

Applications:

Factories, hotels, restaurants, stations, airports, theaters, exhibition halls and other places.

Leave Message Chat Online

  • Description
  • Technical Data
  • Features
  • Advantage

Description

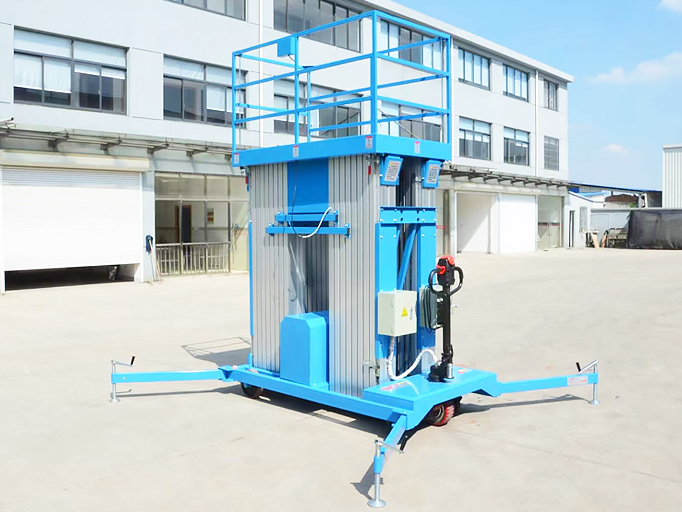

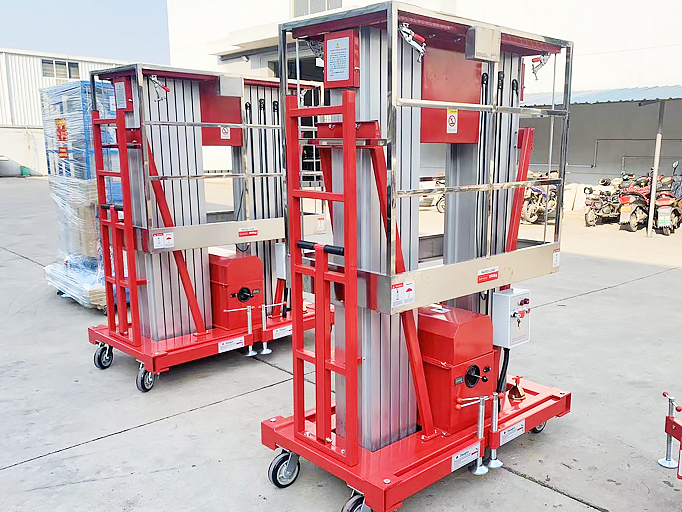

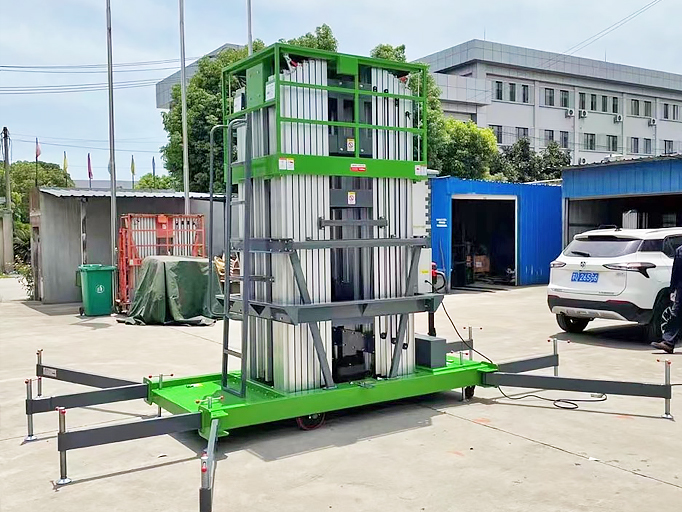

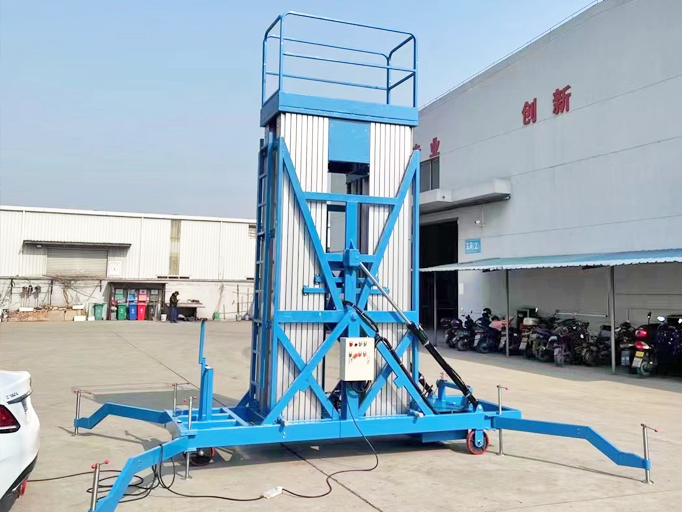

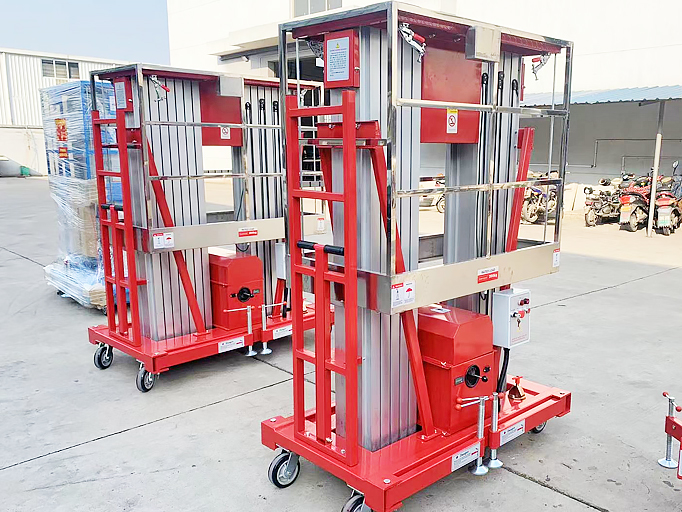

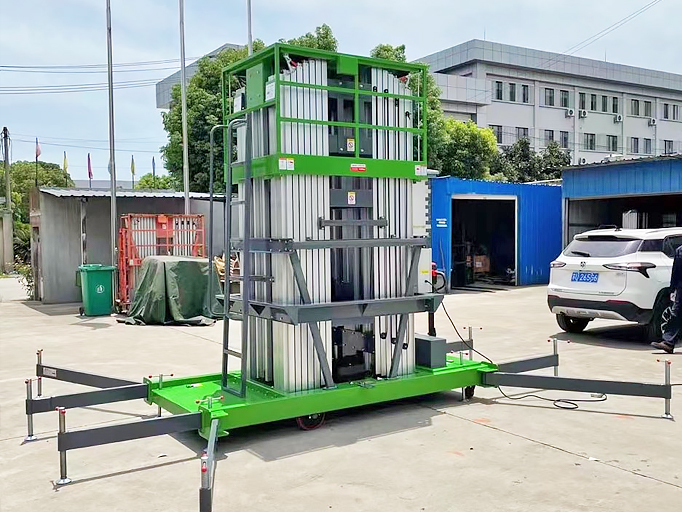

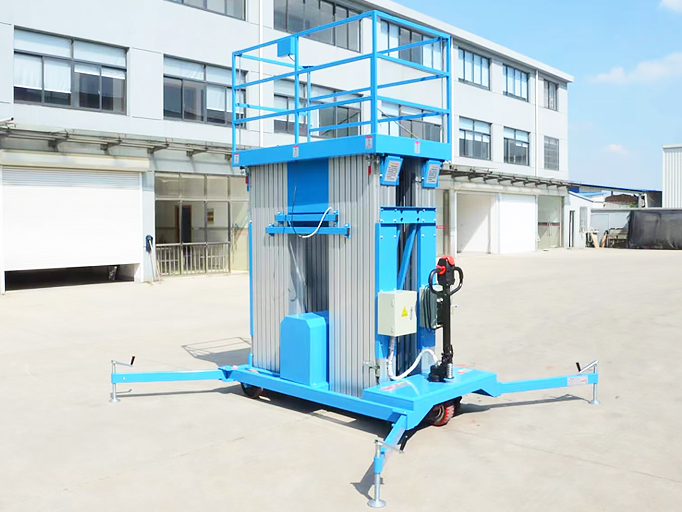

KN Aluminum alloy lifting platform is a type of vertical mast lift, which are divided into single mast aluminum alloy lift platform, double mast, three mast, four mast and six mast according to the structure; According to the lifting power of the platform, it is divided into hand pressure pump, external power supply and battery type.

Aluminum alloy lifting platform can be flexibly selected and reasonably matched according to the specific working conditions.

The aluminum alloy lifting platform is made of high-strength and high-quality aluminum alloy material. The platform itself is equipped with insurance steel ropes and safety protection devices, and can be operated up and down. It is widely used in factories, hotels, restaurants, stations, airports, theaters, exhibition halls and other places. It can enter the elevator car and the normal hall door with low noise, no pollution, and the use of non-marking tires does not hurt the ground. The company newly developed 4+2 type aluminum alloy lifting platform, so that the maximum working height can reach 26m.

Technical Data

Product Specification Model Platform Height/m Capacity/KG Supply Voltage/V Dead Weigh/KG Power/KW Dimension/mm
Single Mast KN0.1-4 4 100 220/380 210 0.75 1100*750*1970
KN0.1-6 6 100 220/380 240 0.75 1100*750*1800
KN0.1-8 8 100 220/380 300 0.75 1200*750*1970
KN0.1-10 10 100 220/380 340 0.75 1300*830*2080
Double Mast KN0.2-4 4 200 220/380 340 0.75 1200*900*1970
KN0.2-6 6 200 220/380 440 1.5 1300*930*1970
KN0.2-8 8 200 220/380 500 1.5 1400*970*1800
KN0.2-10 10 200 220/380 660 1.5 1500*970*1970
KN0.2-12 12 200 220/380 750 1.5 1600*970*1970
KN0.2-14 14 200 220/380 860 2.2 1700*970*2300
Three Mast KN0.2-12 12 200 220/380 770 2.2 1900*1200*2100
KN0.2-14 14 200 220/380 880 2.2 1900*1200*2300
KN0.2-16 16 200 220/380 1100 2.2 1900*1200*2700
KN0.2-18 18 200 220/380 1400 2.2 2100*1300*2800
 Four Mast KN0.2-14 14 200 220/380 880 2.2 1900*1500*2300
KN0.2-16 16 200 220/380 1600 2.2 1900*1200*2600
KN0.2-18 18 200 220/380 1900 2.2 2100*1200*2800
KN0.2-20 20 200 220/380 2000 2.2 2500*1500*3400

Features

  • AC & DC motor
  • Import pump valve
  • Assisted walking
  • Manual hydraulic atmosphere
  • Imported cylinder
  • Explosion-proof motors
  • trailer towing
  • Inflatable tyre

Advantage

The whole machine is light in weight.
The flexible universal wheel has good mobility, which is suitable for single operation.
The lifting mechanism is made of high-strength aluminum alloy profiles.
Equipped with horizontal indicator.
The compressive resistance of high pressure steel wire tubing is much stronger than the maximum pressure of the hydraulic system.
Double-chain transmission is safer and stable.

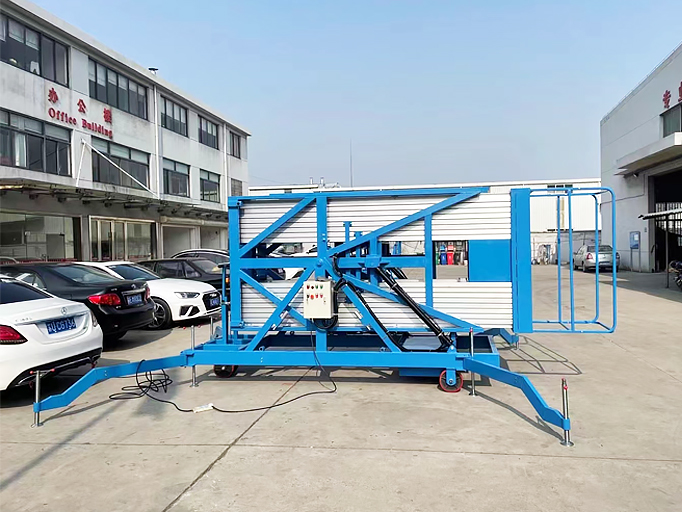

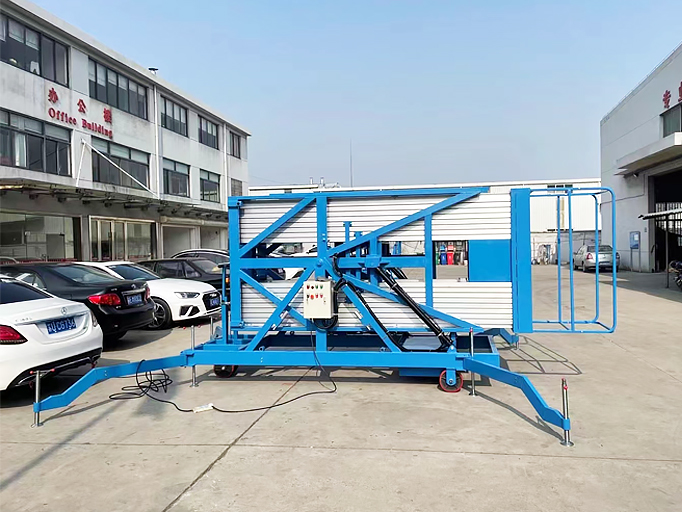

The structure is compact, and the transport size is small. It can enter the general elevator, also can pass through door and narrow channel smoothly.
